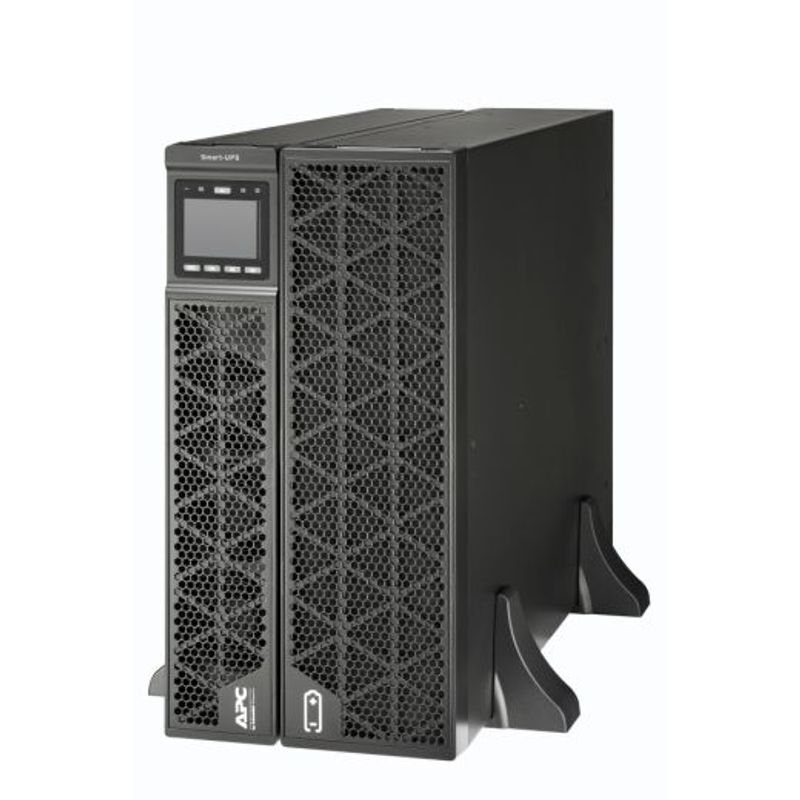

Nobreak 10kva | 10000va APC Schneider Electric SRTG10KXLI OnLine Rack ou Torre

Nobreak 10kva | 10000va APC Schneider Electric SRTG10KXLI OnLine Rack ou Torre

Código: SRTG10KXLI Marca:

Nobreak 10kva | 10000va APC Schneider Electric SRTG10KXLI OnLine Rack ou Torre



NoBreak Dupla Conversão OnLine de 10KVA APC Schneider Electric

Especificações Técnicas:

Output

Max Configurable Power (Watts)
10.0kWatts / 10KVA / 10000VA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220 V, 240 V
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)

Input

Input frequency
40 - 70 Hz Auto-sensing
Input voltage range for main operations
160 - 285V
Other Input Voltages
220 V, 240 V
Maximum Short Circuit Withstand (Icw)
40.0kAmps

Batteries & Runtime

Battery type
Lead-acid battery
Typical recharge time
4hour(s)
Nominal Battery Voltage
+/- 96 V
Expected Battery Life (years)
3 - 5
Battery Charge Power (Watts)
431 Watts
Extendable Run Time
1
Runtime
View Runtime Graph
Efficiency
View Efficiency Graph

Communications & Management

Interface Port(s)
RJ-45 Serial, Smart-Slot, USB
Control panel
LED Status display with on line : on battery, Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
600Joules

Physical

Maximum Height
217MM, 21.7CM
Maximum Width
440MM, 44.0CM
Maximum Depth
620MM, 62.0CM
Net Weight
81.12KG
Shipping weight
83.14KG
Shipping Height
414MM, 41.4CM
